Warehouse Type:

Comprehensive Warehouse

Project Background:

The first generation of entrepreneurs of Bianfeng Machinery Group Co., Ltd. started their business in Wenzhou and have always focused on new fluid conveying equipment, especially the diaphragm pump industry. The company's business covers multiple fields, with main products including: special pumps for new energy lithium batteries, high-flow diaphragm pumps, special pumps for sand mills, marine pneumatic diaphragm pumps, small mine-used pneumatic diaphragm pumps, sanitary diaphragm pumps, powder pumps, spray pump series, factory cleaning equipment series ("Factory Cleaner"), pressure filter feeding systems, filling equipment, etc. They are widely used in the chemical, environmental protection, oilfield, pharmaceutical, food, metallurgical, papermaking, power, printing and dyeing, and other fields.

Pain Points:

High land costs, with the original floor stacking method allowing for few stored goods.

A wide variety of SKU models, leading to frequent errors in manual management.

Solution:

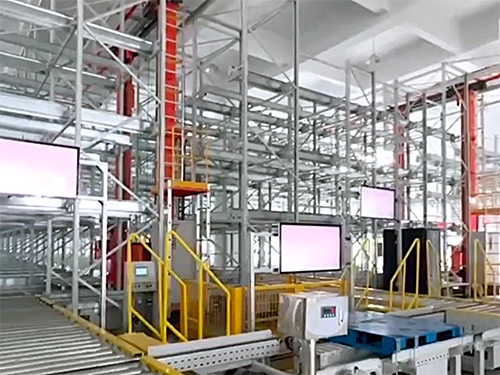

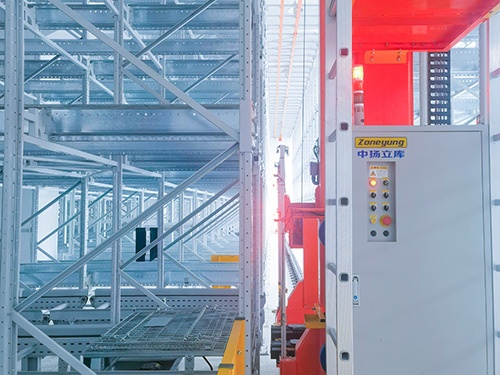

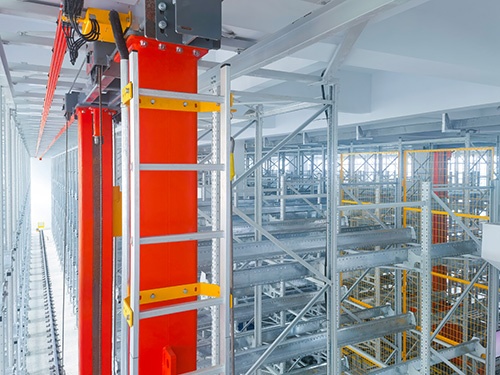

Equipment: 3 pallet stackers

Pallet Storage Location Size: L1200mm*W1000mm*H1200mm

Automated Warehouse Height: 7m, with 4 levels of shelves

Unit Load: 1000kg

Effect:

A total of 1787 effective storage locations, with a 2-3 times increase in space utilization.

The WMS system automatically manages, greatly reducing the probability of errors in manual management.
